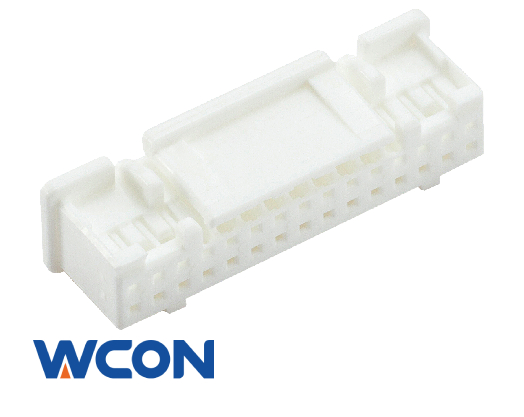

WF2013-2HXXW01

Wire To Board Connector,Receptacle Housing,Double Row,White
Inquiry Now Register
/assets/upload/2024-04-23/WF2013-2H10W01Xi-Lie-Bai-Di.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 250 V/AC Operation Temperature -40°C - +105°C
Rated Current 3 AMP Contact Material Copper Alloy
Contact Resistance 20 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 1000 MΩ Min Contact Plating Sn
Withstand Voltage 800 V/AC,V/DC Packaging Reel

RoHS

Compliant

REACH

Compliant
