3617-PXXX-101XXR01

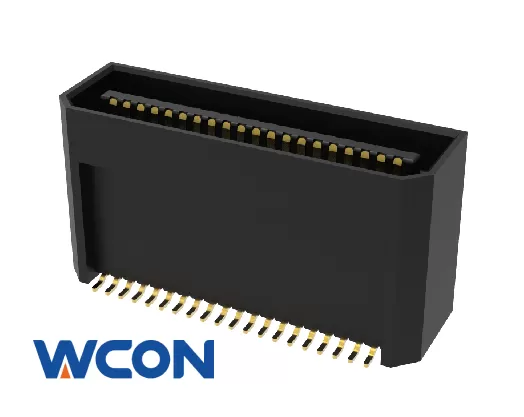

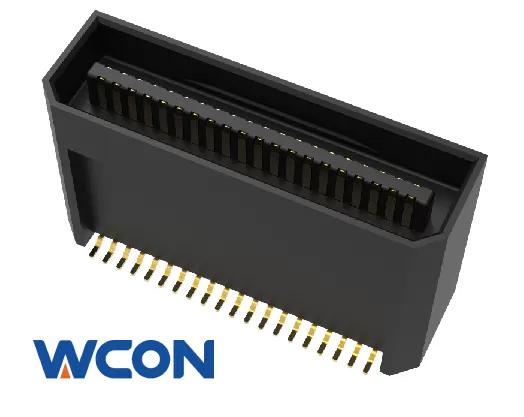

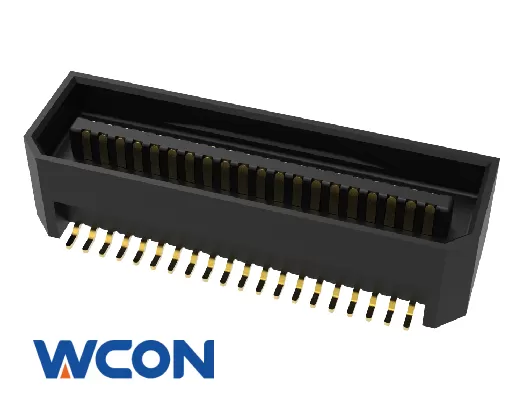

Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row,10.14mm Height,Gold plating,With Post,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 60 V/AC,V/DC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 0.5 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 60 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 250 V/AC,V/DC | Packaging | Tube,Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-

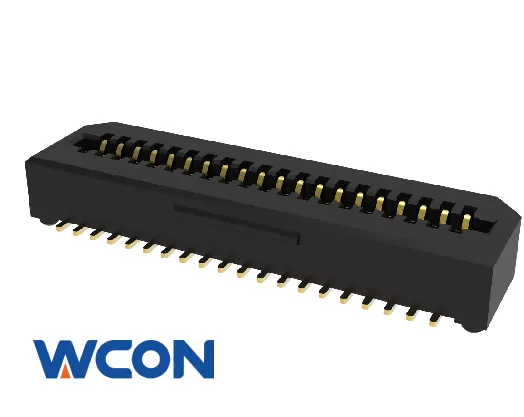

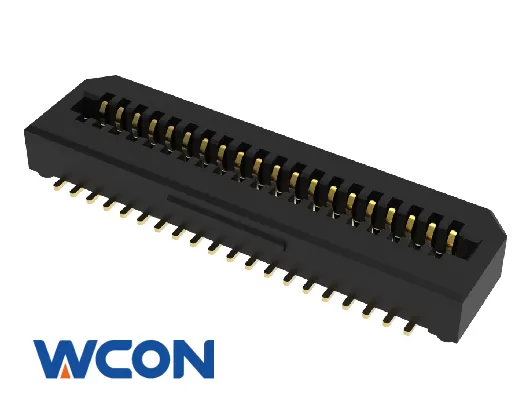

Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,2.20mm Height,Gold plating
-
Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,2.70mm Height,Gold plating
-
Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,11.75mm Height,Gold plating
