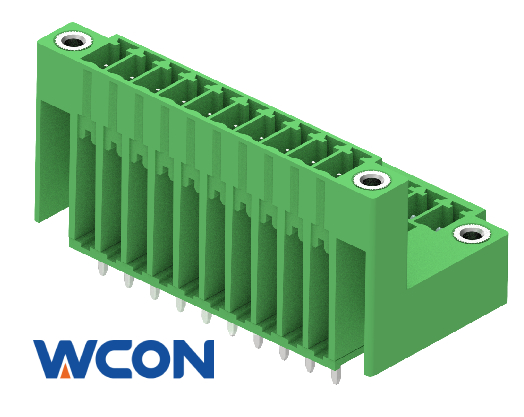

PM350-3SXXASM2N
3.50mm Pitch Male,Pluggable Terminal Blocks,Vertical DIP,With Two Side Screw
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 300 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 8 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 8 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 2500 V/AC,V/DC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
3.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal reverse incoming,Without,Two Side Screw
-
3.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal reverse incoming,With Two Side Screw
-
3.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal forward incoming,Without Two Side Screw
-
3.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal forward incoming,With Two Side Screw
-
3.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Vertical incoming,Without Two Side Screw
-
3.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Vertical incoming,With Two Side Screw
