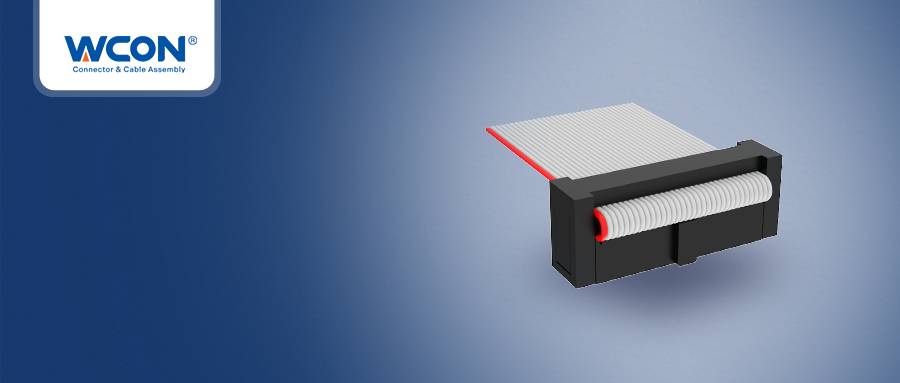

WCON Launches 1.27mm Pitch Wire-to-Board Connector



        The 5242 series is a IDC connector with a dual-row pitch of 1.27mm (0.050 inches) and a row spacing of 2.54mm (0.100 inches). It offers flexible configurations ranging from 10 to 100 pins. The terminals feature an Insulation Displacement Connection (IDC) and single-point contact design. Its advantages include eliminating the need for wire stripping in crimping processes, simplifying assembly procedures, reducing assembly costs, and maintaining termination performance. It is an efficient wire-to-board connection solution.





Cable Crimping Methods

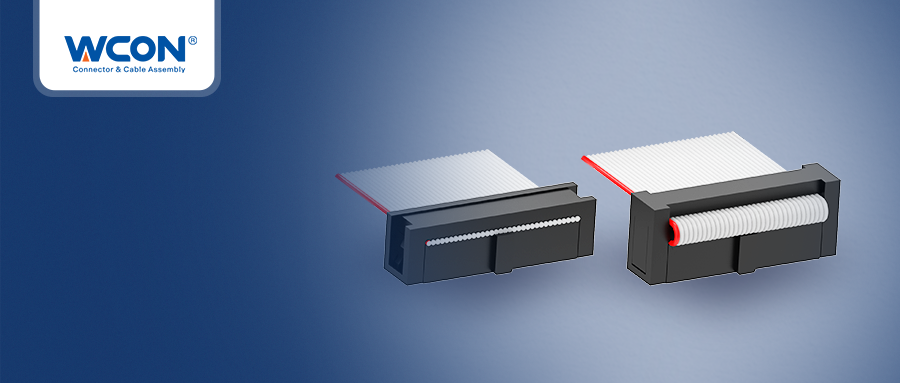

The 5242 series board-end IDC connector offers two wiring options:

  1. Two-piece crimping, where the male and female ends are directly connected using IDC technology, supporting wire gauges from AWG 28-22, improving assembly efficiency by 30%.

  2. Three-piece crimping, where a strain relief cover provides stress relief, preventing cable loosening due to vibration or external pulling, and enhancing mechanical stability during male and female end mating.

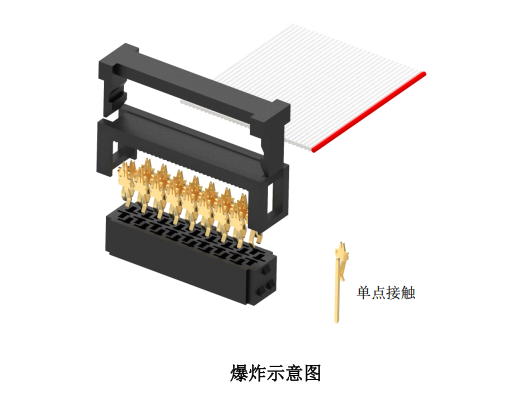

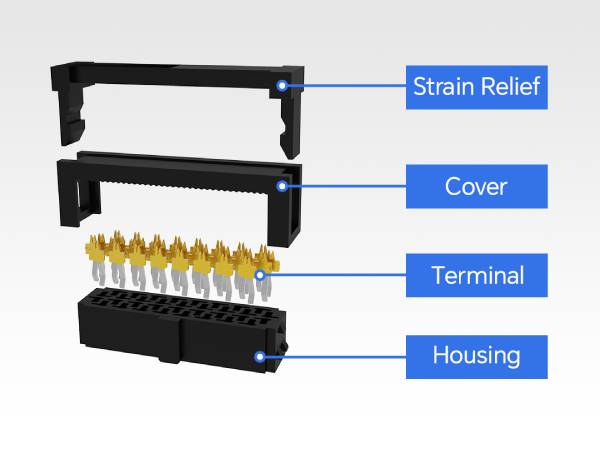

Three-piece crimping illustration



PRODUCT FEATURES

  • Up to 100 pins

  • Two wiring options available

  • IDC piercing design, reducing harness assembly time

  • Foolproof design to prevent incorrect insertion



Application

  • Industrial: Automation equipment, industrial control, testing equipment

  • Energy storage: Power systems, photovoltaic systems

  • Home appliances: Smart home devices, printers, vending machines



STANDARDS

  • EIA-364



GET PRODUCT INFORMATION NOW



CONTACT US

For more information on application solutions for the 5242 series connectors, please feel free to contact our technical support team.
