3651-PXXX-093XXR06

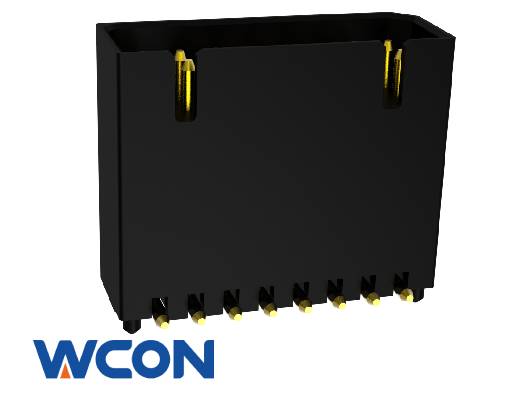

3651 BTB Connector,Male,S/T SMT,Dual Row,Without Post,Gold or Tin ,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
Application Specifications
| Rated Voltage | 50 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 0.5 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA9T | |
| Insulation Resistance | 500 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
3651 BTB Connector,Socket,Dual Row,With or Without Post,Gold or Tin over nickel,Black
-
3651 BTB Connector,Socket,Dual Row,With or Without Post,Gold or Tin over nickel,Black
