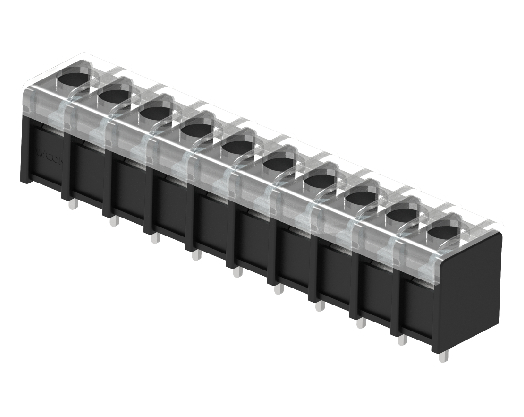

BH762-XXSXXXXX0X(N)
PCB connector，7.62mm,Double-Row,H=17.10,Vertical DIP,Barrier Terminal Blocks
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 300 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 15 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 15 mΩ Max | Insulator Material | Thermoplastic Plastic | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 500 V/AC,V/DC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
