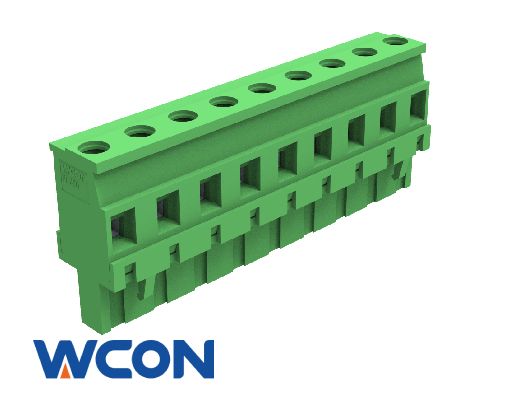

PF750-BXXASMN1(N)

7.50mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal forward incoming,Without Two Side Screw
Inquiry Now Register
/assets/upload/2023-12-23/PF750-B09ASMN1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 300 V/AC Operation Temperature -40°C - +105°C
Rated Current 15 AMP Contact Material Copper Alloy
Contact Resistance 8 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 1000 MΩ Min Contact Plating Sn
Withstand Voltage 2000 V/AC,V/DC Packaging PE Bag

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number

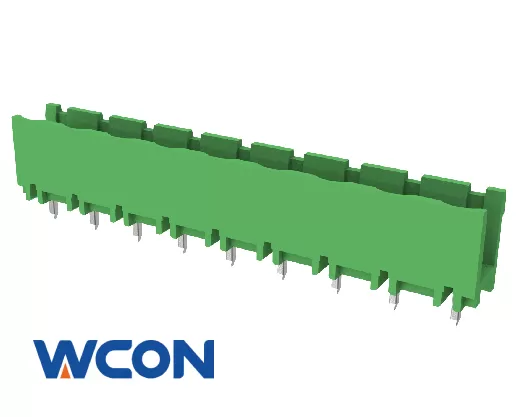

  • 7.50mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP,Without Two Side Screw
    PM750-1RXXASM1

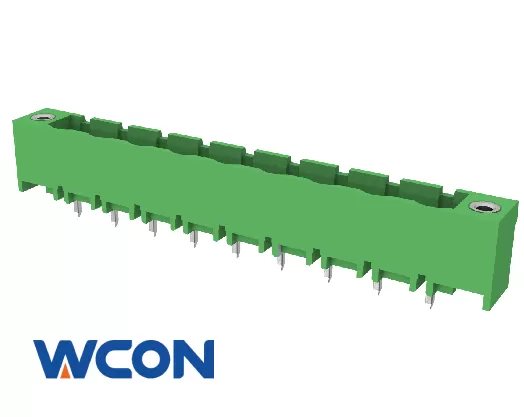

  • 7.50mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP,With Two Side Screw
    PM750-1RXXASM2

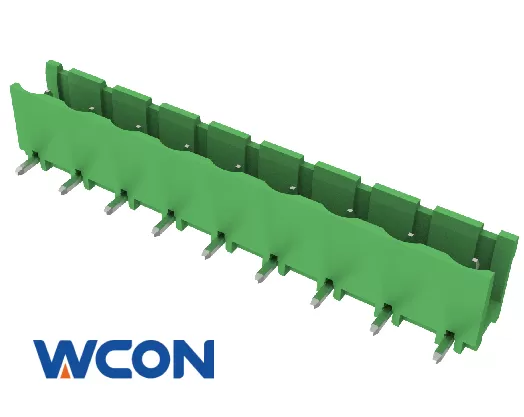

  • 7.50mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP
    PM750-1RXXASM3

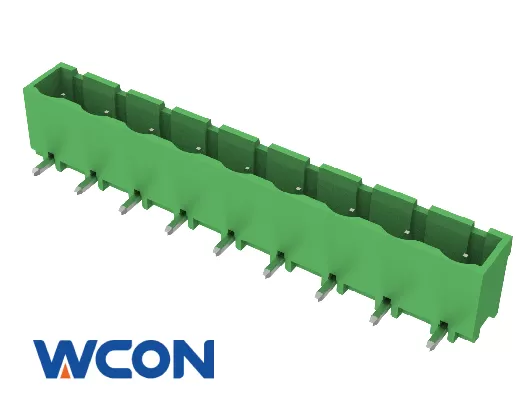

  • 7.50mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,Without Two Side Screw
    PM750-1SXXASM1

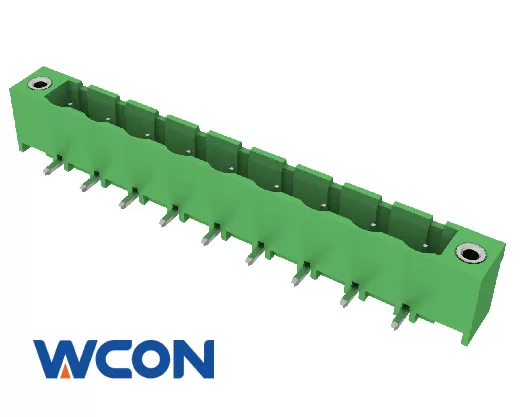

  • 7.50mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,With Two Side Screw
    PM750-1SXXASM2

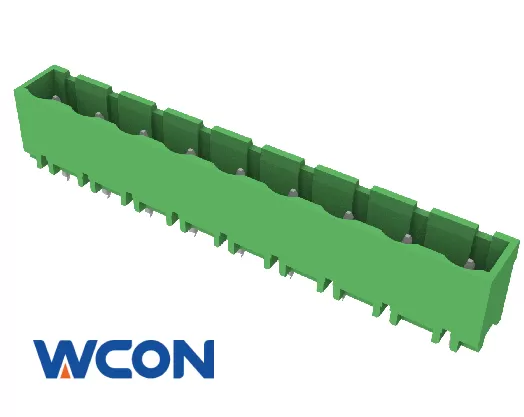

  • 7.50mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP
    PM750-1SXXASM3
