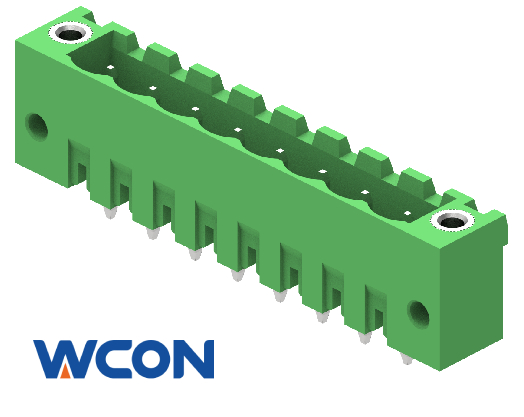

PM500-1SXXASM2

5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,With Two Side Screw
Inquiry Now Register
/assets/upload/2023-12-23/PM500-1S08ASM2.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 300 V/AC Operation Temperature -40°C - +105°C
Rated Current 10 AMP Contact Material Copper Alloy
Contact Resistance 8 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 1000 MΩ Min Contact Plating Sn
Withstand Voltage 2000 V/AC,V/DC Packaging PE Bag

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • 5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal reverse incoming,Without,Two Side Screw
    PF500-AXXXSMN1
  • 5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal reverse incoming,With Two Side Screw
    PF500-AXXXSMW1
  • 5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal forward incoming,Without Two Side Screw
    PF500-BXXASMN1
  • 5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal forward incoming,With Two Side Screw
    PF500-BXXASMN1
  • 5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Vertical incoming,Without Two Side Screw
    PF500-CXXASMN1(N)
  • 5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Vertical incoming,With Two Side Screw
    PF500-CXXASMW1(N)
  • 5.00mm Pitch Female,Single Row,Spring Plugs For Pluggable Terminal Blocks,Vertical incoming,Without,Two Side Screw
    PF500S-1FXXASMN1(N)
  • 5.00mm Pitch Female,Single Row,Spring Plugs For Pluggable Terminal Blocks,Vertical incoming,With Two Side Screw
    PF500S-1FXXASMN1(N)
