As industrial control systems continue to evolve towards higher integration and flexible layouts, demands on connector space adaptation and signal integrity are increasing. The wcon electronics ‘s WF2005 series is a 2.0mm pitch wire-to-board connector featuring high-density layout and reliable electrical performance, effectively ensuring stable and complete signal transmission.

Flexible Layout, Precise Connection

This product provides both horizontal and vertical mounting orientations on the board side, adapting to various mating angles. It is equipped with anti-mismating keying and a latching mechanism to prevent incorrect insertion and enhance mating stability. The dual-contact terminal design further improves contact reliability, making it suitable for diverse connection scenarios in industrial control and automation.

Excellent Performance, Reliable Quality

Exceptional reliability is based on the reliable quality of the product materials. This product uses high-temperature-resistant materials, achieving the highest flame retardant rating UL94V-0,  ensuring stable operation of this 2.0mm wire-to-board connector across a wide temperature range from -40°C to +105°C. It effortlessly withstands the demanding challenges of industrial vibration environments.

Product Features

- Keyway design effectively prevents misinsertion

- Locking mechanism enhances mating stability.

- Dual-contact terminal design improves contact stability.

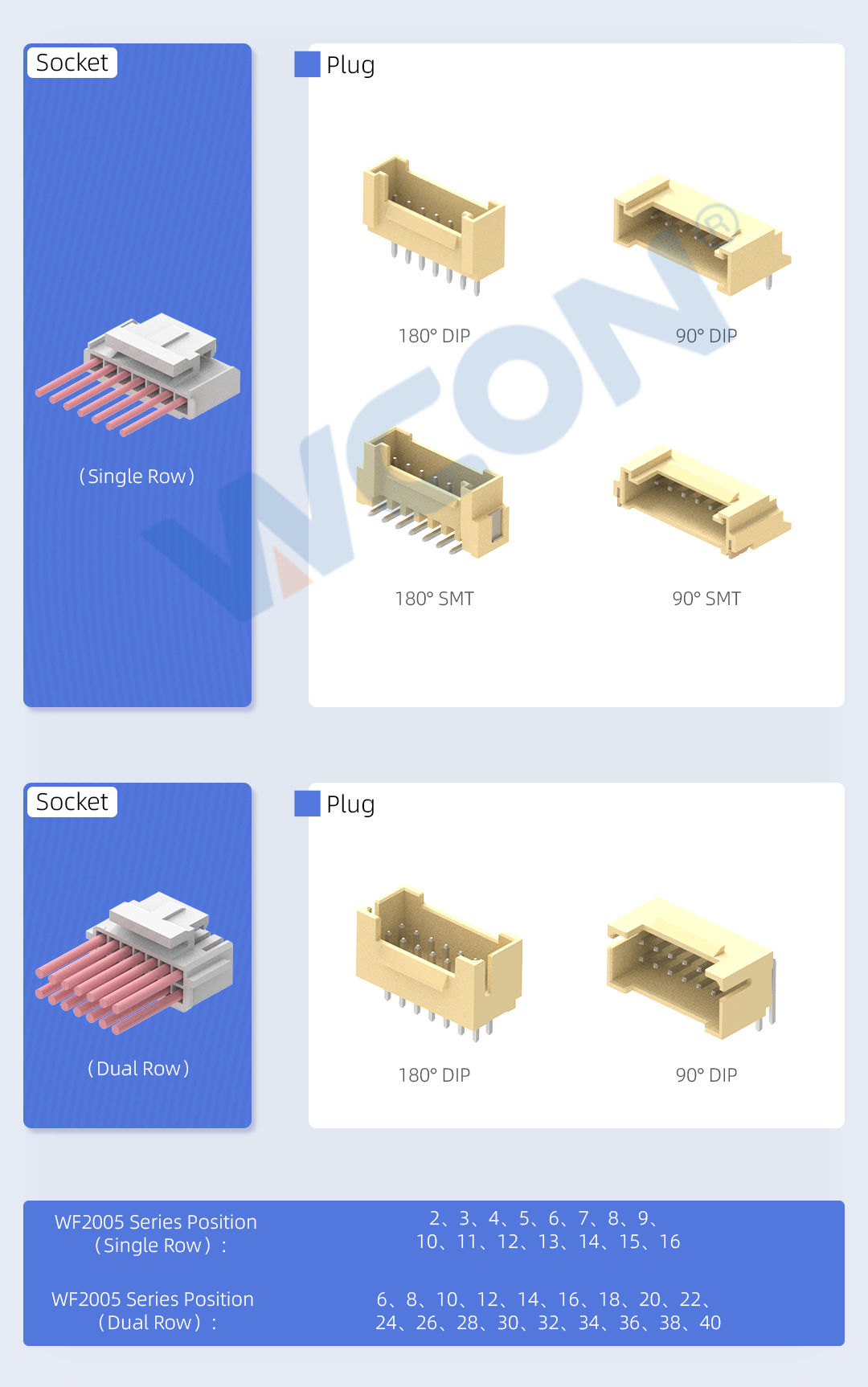

- Diverse board-end configurations accommodate various mating scenarios.

- Compatible wire range: # AWG 24-30.

Performance Specifications

- Rated Current: 3.0 A

- Rated Voltage: 250 V AC

- Insulation Resistance: 500 MΩ Min.

- Withstanding Voltage: 500 V AC/minute

- Operating Temperature: -40° C to +105° C

Standard

- EIA-364

Data sheet

Application

- Industrial: Automation Equipment, Data Communication, Control Cabinets

Get Product Information

Download the detailed WF2005 Series specification (PDF) and view the 3D model online for comprehensive reference for your project selection and design.

Get Professional Support

If you require assistance with product selection, customized application solutions, or technical support for the WF2005 series, please feel free to contact our technical support team at any time. Inquire now to obtain samples >>
