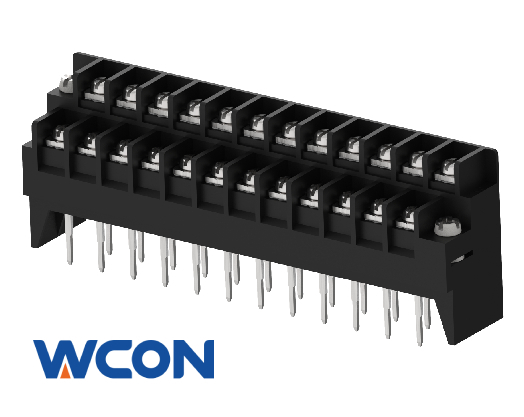

BH762-04-XX-X-G0-S0X
PCB connector，7.62*8.00mm,Double-Row,W=19.0mm*H=35.70mm,Barrier Terminal Blocks
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 300 V/AC | Operation Temperature | -40°C - +120°C | |
| Rated Current | 10 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 8 mΩ Max | Insulator Material | Thermoplastic Plastic | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 2500 V/AC,V/DC | Packaging | PE Bag | |
RoHS
Compliant
REACH
Compliant
