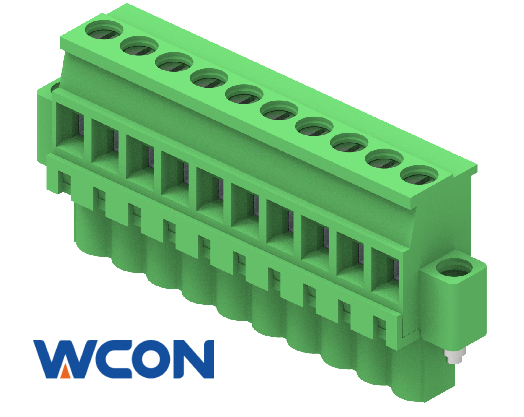

PF500-AXXXSMW1

5.00mm Pitch Female,Single Row,Pluggable Terminal Blocks,Horizontal reverse incoming,With Two Side Screw
Inquiry Now Register
/assets/upload/2023-12-23/PF500-A10ASMW1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 300 V/AC Operation Temperature -40°C - +105°C
Rated Current 10 AMP Contact Material Copper Alloy
Contact Resistance 20 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 1000 MΩ Min Contact Plating Sn
Withstand Voltage 2000 V/AC,V/DC Packaging PE Bag

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • 5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP,Without Two Side Screw
    PM500-1RXXASM1
  • 5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP,With Two Side Screw
    PM500-1RXXASM2
  • 5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP
    PM500-1RXXASM3
  • 5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,Without Two Side Screw
    PM500-1SXXASM1
  • 5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,With Two Side Screw
    PM500-1SXXASM2
  • 5.00mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP
    PM500-1SXXASM3
